Premium High Efficiency Low Noise 160kW 200KVA 200KW 250KVA Natural Gas CHP Generator
GENERAL INTRODUCTION ON SEVENPOWER COGENERATOR SET
-Powered by 6cylinders water-cooled type internal combustion engine
-Air-cooled type alternator
-Engine heat exchanger
-Exhaust heat exchanger made from full stainless steel,longer service life
-Integrated control cabinet
-Safe gas train
-Gas engine control system
-Auto lambda control,easy start
-All necessary engine protections, oil pressure, coolant temperature, over current, over voltage, overload, engine speed, frequency protection, battery voltage
-Easy control system, all information easily read from the controller screen, power output,voltage,current,power factor, engine speed,oil pressure,coolant temperature,battery voltage,run hours,start numbers,alarms,historical records
Key Specifications
| Attribute | Value |
| Output Type | AC Three Phase |
| Gas Source | Natural Gas |
| Power Range | 160-200kW |
| Frequency | 50Hz (60Hz available on request) |
| Voltage | 400/230V (other voltages available on request) |
| Fuel Options | Natural Gas (biogas available on request) |
| Heat Recovery | Both Engine and Exhaust |
| Electrical Output | 160kW |
| Heat Output | 227kW |
| Electrical Efficiency | 34.9% |
| Thermal Efficiency | 49.4% |
| Overall Efficiency | 84.3% |
| Gas Pressure | 5-15kPa |
| Certification | CE |
Why Choose SevenPower CHP Units?
- 15+ years of experience in gas generator sets and CHP systems
- Collaboration with European companies for superior quality
- Environmentally friendly design with low noise levels
- Extensive R&D and testing for maximum reliability
- Maintenance-friendly design with easy access points
- Extended service intervals for reduced downtime
Quality Assurance & Testing
- Regular production progress updates
- Comprehensive pre-delivery testing including:
- Load testing at 0%, 25%, 50%, 75%, 100%, and 110% capacity
- Emergency stop functionality
- All protection systems (temperature, oil pressure, speed, load, frequency, phase failure)
- Electrical and thermal power output verification
- Synchronization testing
Applications
The SevenPower SP200N Natural Gas CHP system is designed for commercial and industrial applications requiring high-efficiency combined heat and power solutions. With an exceptional 84.3% overall efficiency rating, this system significantly reduces energy costs while meeting demanding power requirements.
Additional Information
Delivery: Approximately 40 days
Minimum Order: 1 set
Payment Terms: T/T
Origin: Chengdu, China
Our Facilities

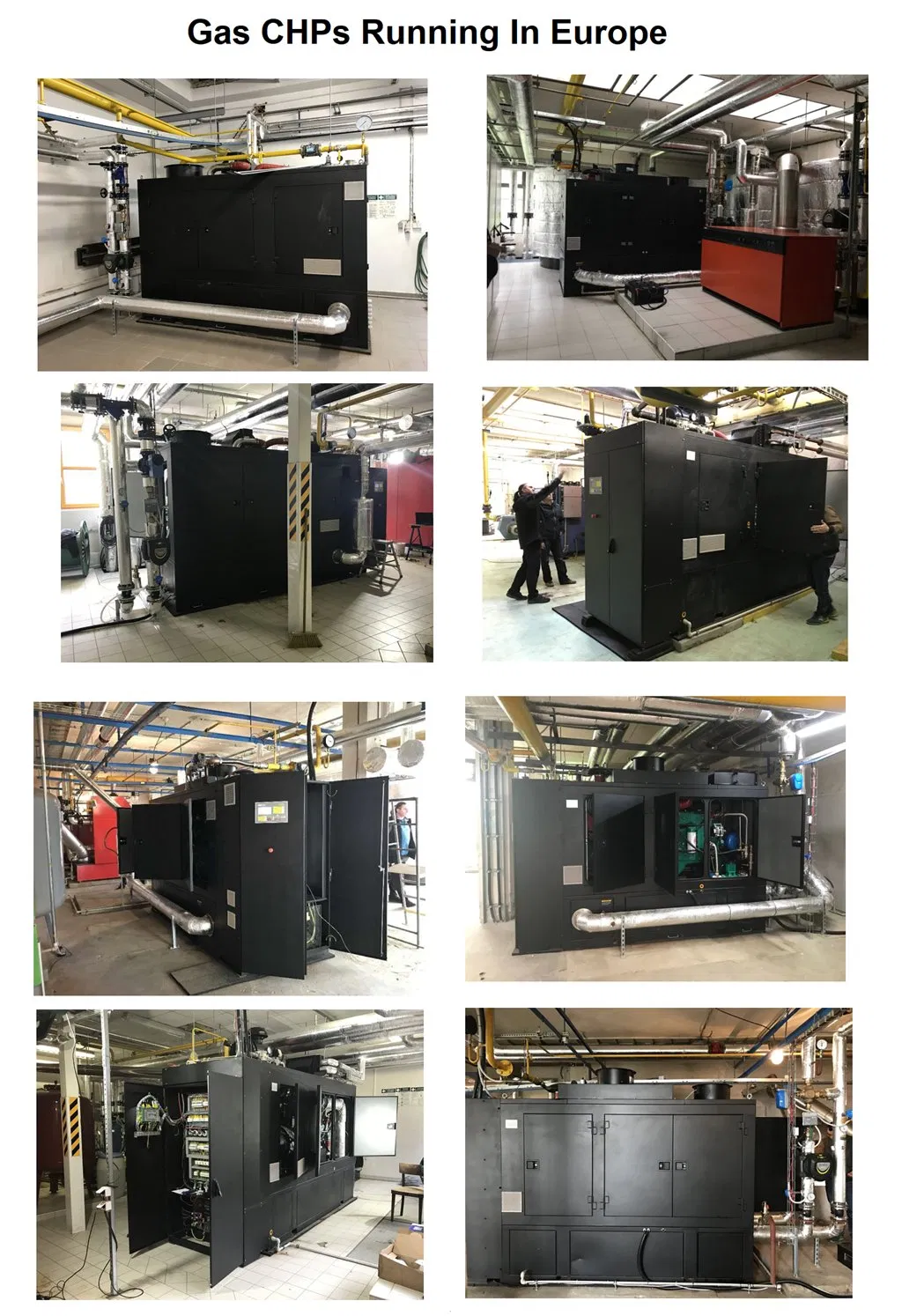

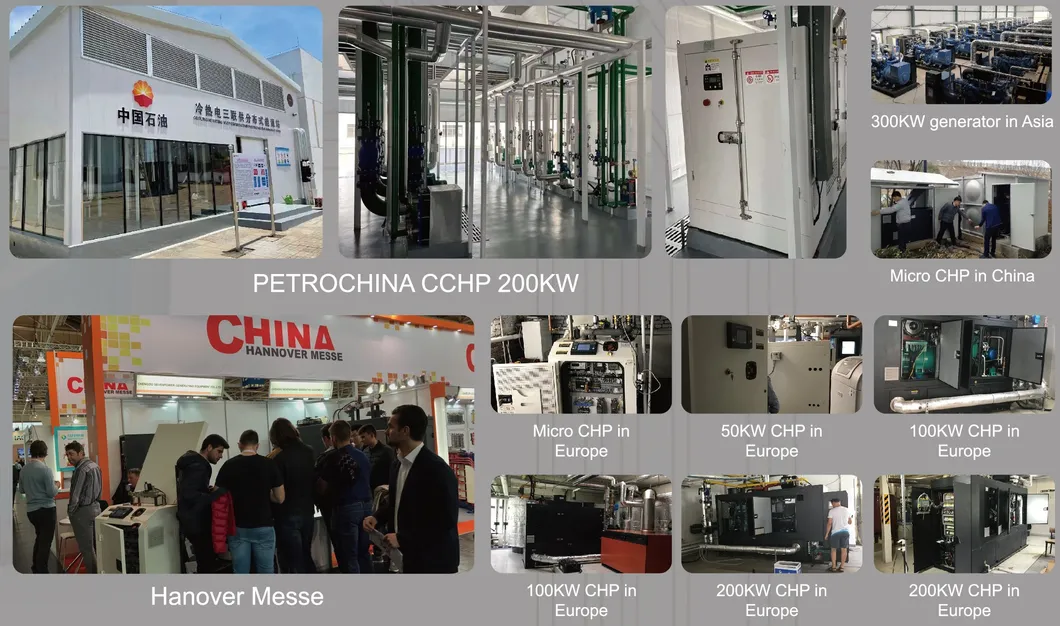

Global Installations
